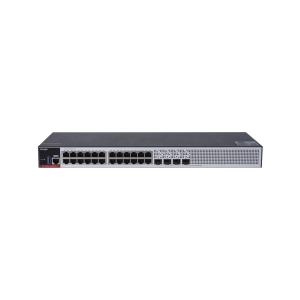

Secure Cloud-Managed 24-Port Gigabit Switch With RLDP & NFPP - Ruijie Switch
The Ruijie RG-S2906-24GT4MS-L is a high-performance, cloud-managed 24-port Gigabit Ethernet switch designed for commercial real estate, hotels, and small-to-medium businesses. It combines advanced security, energy efficiency, and flexible management to deliver a robust networking solution.
Enhanced Security with RLDP & NFPP
RLDP (Rapid Loop Detection Protocol) – Quickly identifies and prevents network loops caused by unauthorized devices, ensuring stable connectivity .
NFPP (Network Foundation Protection Policy) – Protects against DDoS, ARP spoofing, and ICMP flooding by rate-limiting malicious traffic and isolating attackers .
CPU Protection (CPP) – Prioritizes critical traffic to prevent CPU overload from cyber threats.
High-Speed 2.5G Uplink for Bandwidth-Intensive Applications
Four 1G/2.5G SFP uplink ports support high-bandwidth demands like HD video surveillance and multi-device environments.
336Gbps switching capacity & 126Mpps forwarding rate ensures smooth data transmission.
Silent & Energy-Efficient Operation
Fanless design (0dB noise) ideal for offices and hotels .
IEEE 802.3az EEE reduces power consumption by up to 30% during low traffic.
Cloud & Web-Based Management
Remote configuration via Ruijie Cloud App/Web, enabling real-time monitoring, batch updates, and automatic topology discovery.
USB & Web GUI support for easy firmware upgrades and troubleshooting.
Industrial-Grade Reliability
10KV surge protection on all ports for lightning resistance .
Wide operating temperature (0°C–50°C) for stable performance in harsh conditions.
| Feature | Specification |
|---|---|
| Ports | 24× Gigabit RJ45, 4× 1G/2.5G SFP |
| Switching Capacity | 336Gbps |
| Forwarding Rate | 126Mpps |
| PoE Support | No (PoE model: RG-S2906-24GT4MS-P-L) |
| Security | RLDP, NFPP, CPP, ACL, DHCP Snooping |
| Management | Web, CLI, Ruijie Cloud, SNMP |
| Power Consumption | 15.6W (fanless) |
| Dimensions | 440×220×43.6mm (1U rack-mountable) |
Commercial buildings & hotels – Silent operation, high-density connectivity.
SMB networks – Secure, scalable, and easy-to-manage infrastructure.
Surveillance systems – 2.5G uplink handles multiple IP cameras without lag.
This Ruijie cloud-managed switch ensures secure, high-speed, and energy-efficient networking with minimal maintenance. For PoE versions, check the RG-S2906-24GT4MS-P-L model.
