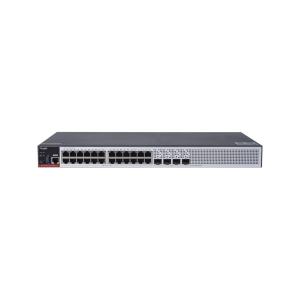

High-Performance 24-Port PoE+ Ruijie Switch With 2.5G Uplink & Cloud Management
The Ruijie RG-S2906-24GT4MS-P-L is a next-generation 24-port Gigabit PoE+ managed switch designed for commercial buildings, hotels, and SMEs, offering high-speed connectivity, advanced security, and cloud-based management. With 2.5G uplink ports, 370W PoE+ power budget, and enterprise-grade reliability, this switch is ideal for IP surveillance, wireless APs, and VoIP deployments.
2.5G Uplink Ports – Delivers 2.5x faster bandwidth than standard 1G uplinks, reducing congestion in high-traffic environments like 4K video surveillance and multi-device networks.
Full PoE+ Support (IEEE 802.3af/at) – All 24 ports provide up to 30W per port, with a total PoE budget of 370W, perfect for IP cameras, WiFi 6 APs, and IoT devices.
Cloud Management & Easy Deployment – Supports Ruijie Cloud for remote monitoring, batch configuration, and real-time alerts via WeChat/email.
Enhanced Security & Stability
CPU Protection (CPP) – Blocks malicious traffic to prevent CPU overload.
Network Foundation Protection (NFPP) – Throttles ARP/ICMP flood attacks.
10KV Surge Protection – Protects against lightning strikes.
Rapid Loop Detection (RLDP) – Prevents network loops from unapproved devices.
Smart Cooling & Low Noise (≤39dB) – Dual fans with intelligent speed control for energy efficiency and quiet operation.
| Category | Specifications |
|---|---|
| Ports | 24× Gigabit PoE+ (802.3af/at), 4× 1G/2.5G SFP uplinks |
| PoE Budget | 370W (30W max per port) |
| Switching Capacity | 3.36Tbps |
| Forwarding Rate | 126Mpps |
| Security | CPP, NFPP, RLDP, ACL, Port Isolation |
| Management | Web, CLI, Ruijie Cloud, SNMP, USB firmware upgrade |
| Cooling | Dual smart fans (≤39dB noise) |
| Dimensions | 440×220×44mm (1RU rack-mountable) |
| Warranty | Typically 3 years (varies by region) |
Future-Proof Networking – 2.5G uplinks ensure scalability for growing bandwidth demands.
Reliable PoE+ Power – Supports high-power devices without extra injectors.
Zero-Touch Cloud Management – Simplifies multi-site deployments with centralized control.
Ideal for smart offices, retail stores, and hospitality networks, the RG-S2906-24GT4MS-P-L combines performance, security, and ease of use in a cost-effective package.
