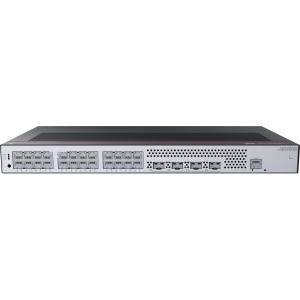

24-Port Gigabit Huawei Switch With SFP Uplinks & Web Management S1730S-S24T4S-QA3
The Huawei S1730S-S24T4S-QA3 is a cost-effective, Layer 2 Gigabit Ethernet switch designed for small businesses, offices, and campus networks. It delivers high-speed connectivity with 24× 10/100/1000BASE-T ports and 4× Gigabit SFP uplink slots, enabling flexible fiber or copper uplinks for scalable network expansion.
✅ High-Speed Connectivity – 24× Gigabit Ethernet ports provide high-density access for PCs, IP phones, and cameras, while 4× SFP slots support fiber uplinks (up to 40km with optional modules).
✅ Easy Management – Web-based GUI and CLI support for effortless configuration. Compatible with CloudCampus for remote monitoring.
✅ Enterprise-Grade Security – Features 802.1X authentication, MAC address binding, and port isolation to prevent unauthorized access.
✅ Optimized Performance – Supports QoS prioritization, STP/RSTP, and broadcast storm control for stable VoIP and video traffic.
✅ Silent & Energy-Efficient – Fanless design (0dB noise) and auto-sleep ports reduce power consumption (typical <20W).
| Model | Huawei S1730S-S24T4S-QA3 |
|---|---|
| Ports | 24× 10/100/1000BASE-T, 4× 100/1000BASE-X SFP |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.7 Mpps |
| MAC Address Table | 8K entries |
| VLAN Support | 4K VLANs, Port-based/Protocol-based |
| Management | Web, CLI, SNMP, CloudCampus compatible |
| Power Consumption | <20W (typical) |
| Operating Temperature | -5°C to 45°C |
| Dimensions | 442×220×43.6mm (1U height) |
✔ Office Networks – Reliable connectivity for workstations, printers, and VoIP phones.
✔ Surveillance Systems – Supports IP cameras with Gigabit bandwidth.
✔ Retail & Education – Affordable plug-and-play deployment for small-scale networks.
